NEW
NEW NEW NEW NEW NEW NEW in 2013

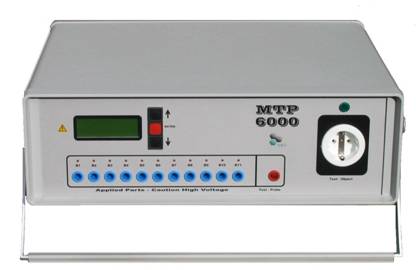

IEC Test-System-MTP6000
IEC
601-Tester
with High Voltage Test
NEW
! NEW ! NEW ! NEW ! NEW ! NEW ! NEW ! from 08/2013
We changed to a
smaller size - 30%
Now available also
without High Voltage Test
As Standard IEC Tester
Ask for prices
For acessoires please ask
Measurement by IEC 601
ISOLATION Power PE
ISOLATION APP. D
EARTH LEAK.CURR.NC P.on
EARTH LEAK.CURR.NC P.on/R
EARTH LEAK.CURR.SFC P.on
EARTH LEAK.CURR.SFC P.on/R
CASE LEAK.CURR.NC P.on
CASE LEAK.CURR.NC P.on/R
CASE LEAK.CURR.ISOLATION AP PE
ISOLSFC P.on
CASE LEAK.CURR.SFC P.on/R
PAT.LEAK.CURR.NC P.on
PAT.LEAK.CURR.NC P.on/R
PAT. LEAK.CURR.SFC P.on
PAT. LEAK.CURR.SFC P.on/R
PAT. LEAK.CURR.SFC P open
PAT. LEAK.CURR.SFC P AP
PROTECTION GROUND
10A / 1A DC or 10A AC
Soon
available differential current
Measurements IEC 62353
REPL.EQUIP.LEAK.CURR. SK I SK II
EQUIP.LEAK.CURR. Direct SK I SK II
REPL.PAT.LEAK.CURRENT.
REPL.PAT.LEAK.CURR.SFC P. AP
REPL.PAT.LEAK.CURR.Type B
DEVICE CURRENT
POWER VOLTAGE
HIGH VOLTAGE TEST
TEST OF
THE PATIENTCABLES-INLETS
HICH VOLTAGE ISOLATION TEST WITH 5000 Volts / 500uA
No handling with measurement cables necessary
-
SPARK-OVER RECOCNITION
- DURATION 30 sec
HIGH VOLTAGE .PLUG1-11
MORE FEATURES :
REMOTE CONTROL VIA
RS232 AND THE PROVIDED SOFTWARE
Soon via Bluetooth
-MEDOC-.
CONTROL OF THE MTP6000 VIA
TEST REGULATIONS
DEVICE PROTECTION
FUSE : AUTOMATIC
16A
CASE IP40
CONNECTIONS IP 20 by DIN VDE 0470 Part 1/EN60529
WEIGHT 12kg
ELECTRICAL SAFETY
PROTECTION CLASS I by IEC 601/VDE 0750
POWER SUPPLY 230 V (110Volts)
TEST VOLTAGE 5 KV
SPARK OVER CATEGORY
II
DATA INTERFACE
RS232
ART RS232, serial, by DIN 19241
Format 38,4 kBaud,N,8,1
